CH-360HA Hydraulic Automatic Horizontal Band Saw

Name: CH360HA Hydraulic Automatic Horizontal Band Saw
Brand: CHENLONG
Price: 9 USD

Place of Origin : Zhejiang, China

Brand Name : CHENLONG

Certification : CE,ISO9001,ISO14001,OHSAS18000

Packaging Details : plywood case + angle rion pallet or nude

MOQ : 1 Set/Sets

Price : $9,500.00 - $12,000.00 / Set

Delivery Time : 40workdays

Power (kW) : 4

Weight (KG) : 1880

Key Selling Points : Energy saving

Warranty : 1 YEAR

After-sales Service Provided : Free spare parts, Online support, Free spare parts,online support

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining, Metal Processing Factory

function : metal cutting

POWER : UP TO CUSTOMER

Machine Designers : 10

Work Staffs : More than 200

Company Area : More than 65000 square meters

Port : Ningbo/Shanghai

Contact Now

CHENLONG CH-360HA Hydraulic Band Saw Metalworking Band Saw Horizontal Band Sawing Machine

CH-360HA Hydraulic Automatic Horizontal Band Saw

Product parameters

Model Name	New	CH-360HA (Double Column Fully Auto)
	Original
Max.cutting	Round	360mm
capacity	Quadrate	360×360mm
Saw blade	Speed	20 to 80 m/min (inverter)
	Size	34×1.1×4420mm
	Guides	Carbide and bearing blade guides
	Cleaning	Power wire brush & flood coolant
	Tension	Hydraulic
Motor output	Blade	4kw
	Hydraulic	0.75kw
	Coolant	0.06kw
Multiple feed		400mm × 9 times
Work Vice		Hydraulic
Gross Weight		1880kg
Packing Size(L×W×H)		2600×2300×1780
Standard Equipment:
1. Power blade cleaning brush.
2. Working light.
3. Fast approaching device.
4. One piece of bi-metal saw blade.
5. One set of tools with tool box
6. NC control
7. Automatic chip conveyor
8. Roller rack 2M long
9. Bundle cutting device

CH-360HA Hydraulic Automatic Horizontal Band Saw

Product Tags:

CH-360HA auto feed bandsaw

metal cutting automatic bandsaw machine

China CH-360HA Hydraulic Automatic Horizontal Band Saw wholesale

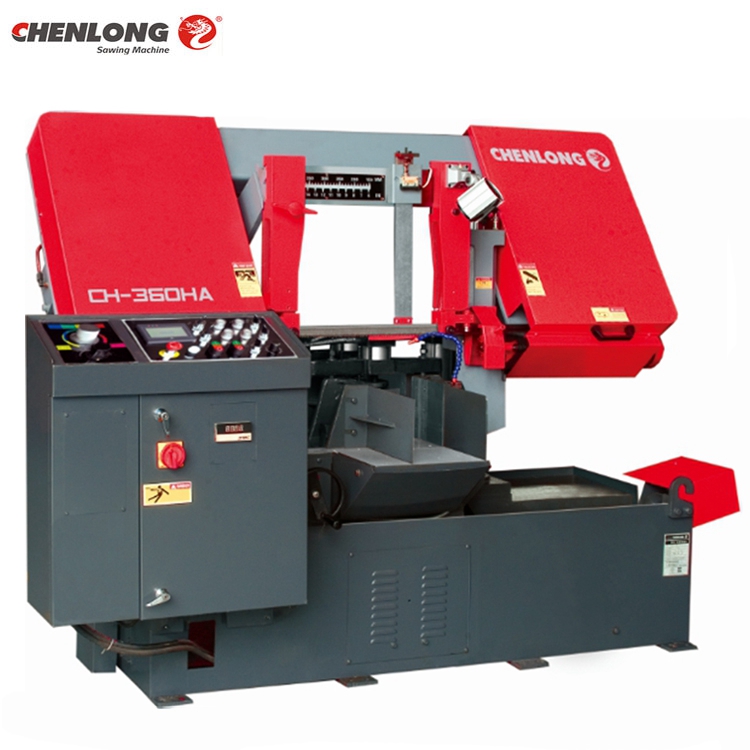

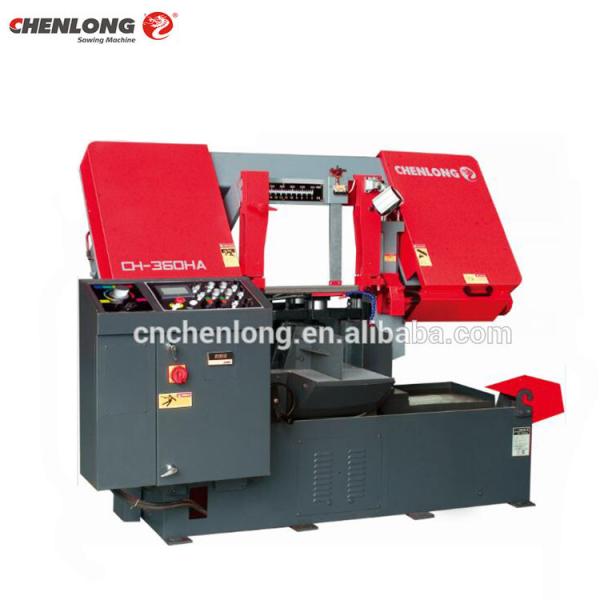

CH-360HA Hydraulic Automatic Horizontal Band Saw Images
